出于需要，APP里面需要一个根据给定数据绘制折线图的功能。上网查找了相关资料后惊奇的发现了功能强大的MPAndroidChart。在此与大家一起分享一下使用MPAndroidChart的方法。
MPAndroidChart源码
引入相关依赖
要使用MPAndroidChart是要需要在工程里面引入相关的依赖。官方文档里面给出了四种引入方式，这里以开发环境为Android Studio为例（即Gradle dependency）。
首先在project level的build.gradle里面添加：
allprojects {
repositories {
maven { url "https://jitpack.io" }
}
}
其次在app level的build.gradle里面添加：
dependencies {
implementation 'com.github.PhilJay:MPAndroidChart:v3.0.3'
}
开始画图
MPAndroidChart的一大方便之处就是，画图就像添加一个控件那么方便。首先在.xml文件里面添加LineChart“控件”。
<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="com.example.xkw.draw_data.MainActivity">
<!--折线图-->
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/chart1"
android:layout_height="match_parent"
android:layout_width="match_parent"
/>
</android.support.constraint.ConstraintLayout>
然后，主程序里面实例化一个折线图并与该“控件”绑定，传入相关数据即可完成绘图。
public class MainActivity extends AppCompatActivity implements OnChartGestureListener,OnChartValueSelectedListener{
private LineChart mChart;
private LineData data;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
mChart = (LineChart) findViewById(R.id.chart1);
mChart.setOnChartGestureListener(this);
mChart.setOnChartValueSelectedListener(this);
mChart.setDrawGridBackground(false);
// 无描述文本
mChart.getDescription().setEnabled(false);
// 使能点击
mChart.setTouchEnabled(true);
// 使能拖动和缩放
mChart.setDragEnabled(true);
mChart.setScaleEnabled(true);
// 如果为false，则x，y两个方向可分别缩放
mChart.setPinchZoom(true);
/**
1.添加assets文件 project->src->main位置，右键new->Directory->assets
2.在assets文件中 new->Directory->Fonts文件
3.在Fonts文件中复制下载好的ttf文件，例如OpenSans-Regular.ttf
*/
//设置上下限
Typeface tf = Typeface.createFromAsset(getBaseContext().getAssets(), "Fonts/OpenSans-Regular.ttf");
LimitLine ll1 = new LimitLine(90f, "Upper Limit");
ll1.setLineWidth(4f);
ll1.enableDashedLine(10f, 10f, 0f);
ll1.setLabelPosition(LimitLine.LimitLabelPosition.RIGHT_TOP);
ll1.setTextSize(10f);
ll1.setTypeface(tf);
LimitLine ll2 = new LimitLine(80f, "Lower Limit");
ll2.setLineWidth(4f);
ll2.enableDashedLine(10f, 10f, 0f);
ll2.setLabelPosition(LimitLine.LimitLabelPosition.RIGHT_BOTTOM);
ll2.setTextSize(10f);
ll2.setTypeface(tf);
//设置x轴位置
XAxis xAxis = mChart.getXAxis();
xAxis.setPosition(XAxis.XAxisPosition.BOTTOM);
//去除右边的y轴
YAxis yAxisRight = mChart.getAxisRight();
yAxisRight.setEnabled(false);
YAxis yAxisLeft = mChart.getAxisLeft();
yAxisLeft.addLimitLine(ll1);
yAxisLeft.addLimitLine(ll2);
init();
}
private void init(){
//初始化数据
String xl[] ={"1","2","3","4","5","6","7","8","9","10"}; //横轴数据
String yl[] ={"80","85","80","90","95","88","90","91","92","93"}; //竖轴数据
data = getData(xl,yl);
mChart.setData(data);
mChart.animateX(2000);//动画时间
}
private LineData getData(String[] xx, String[] yy){
ArrayList<Entry> yVals = new ArrayList<Entry>();
for (int i = 0; i < yy.length; i++) {
// 要显示的数据
yVals.add(new Entry(Float.parseFloat(xx[i]),Float.parseFloat(yy[i])));
}
//一条曲线对应一个LineDataSet
LineDataSet set1 = new LineDataSet(yVals, "前五次的评分");
set1.setMode(LineDataSet.Mode.CUBIC_BEZIER);//设置曲线为圆滑的线
set1.setCubicIntensity(0.2f);
set1.setDrawCircles(true); //设置有圆点
set1.setLineWidth(2f); //设置线的宽度
set1.setCircleSize(5f); //设置小圆的大小
set1.setDrawFilled(true);//设置包括的范围区域填充颜色
set1.setCircleColor(Color.rgb(244, 117, 117));
set1.setColor(Color.rgb(244, 117, 117));
ArrayList<ILineDataSet> dataSets = new ArrayList<ILineDataSet>();
dataSets.add(set1); // add the datasets
// create a data object with the datasets
LineData data = new LineData(dataSets);
return data;
}
@Override
public void onChartGestureStart(MotionEvent me, ChartTouchListener.ChartGesture lastPerformedGesture) {
}
@Override
public void onChartGestureEnd(MotionEvent me, ChartTouchListener.ChartGesture lastPerformedGesture) {
if(lastPerformedGesture != ChartTouchListener.ChartGesture.SINGLE_TAP)
mChart.highlightValues(null); // or highlightTouch(null) for callback to onNothingSelected(...)
}
@Override
public void onChartLongPressed(MotionEvent me) {
}
@Override
public void onChartDoubleTapped(MotionEvent me) {
}
@Override
public void onChartSingleTapped(MotionEvent me) {
}
@Override
public void onChartFling(MotionEvent me1, MotionEvent me2, float velocityX, float velocityY) {
}
@Override
public void onChartScale(MotionEvent me, float scaleX, float scaleY) {
}
@Override
public void onChartTranslate(MotionEvent me, float dX, float dY) {
}
@Override
public void onValueSelected(Entry e, Highlight h) {
}
@Override
public void onNothingSelected() {
}
}

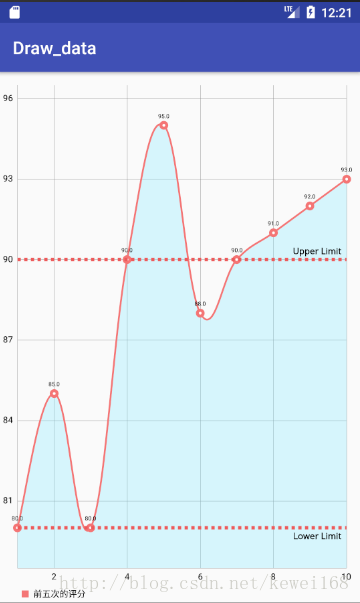

结果示意
本文源码
